Abstract base class for RF attenuator implementations. More...

#include <AttenuatorBase.h>

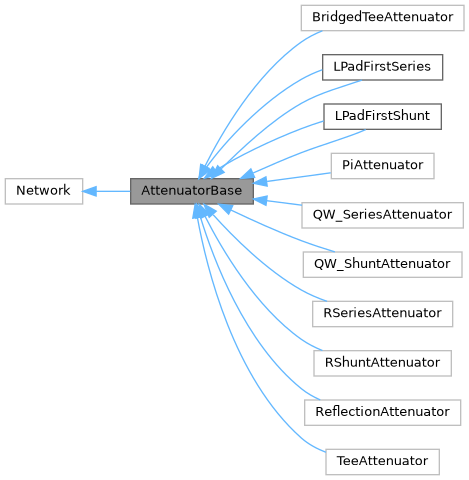

Inheritance diagram for AttenuatorBase:

[legend]

Collaboration diagram for AttenuatorBase:

[legend]

Public Member Functions
	AttenuatorBase ()=default
	Class constructor.

	AttenuatorBase (AttenuatorDesignParameters AS)
	Construct with design parameters.

virtual	~AttenuatorBase ()=default
	Class destructor.

virtual void	synthesize ()=0
	Synthesize the attenuator: Calculates topology parameters and build the circuit.

QMap< QString, double >	getPowerDissipation ()
	Get power dissipation for all resistors in the attenuator.

Public Member Functions inherited from Network
virtual	~Network ()
	Destructor.

Protected Member Functions
virtual void	calculateParams ()=0
	Calculate component values and power dissipation.

virtual void	buildNetwork ()=0
	Build the schematic network.

Protected Attributes
AttenuatorDesignParameters	Specification
	Design specifications.

QMap< QString, double >	Pdiss
	Power dissipation per resistor (Watts)

Additional Inherited Members
Public Attributes inherited from Network
SchematicContent	Schematic
	Circuit data including components, nets, and simulation info.

Detailed Description

Abstract base class for RF attenuator implementations.

Constructor & Destructor Documentation

◆ AttenuatorBase()

AttenuatorBase::AttenuatorBase ( AttenuatorDesignParameters AS )

inline

Construct with design parameters.

Parameters

AS	Design specifications (attenuation, impedances, frequency, power, etc.)

Member Function Documentation

◆ buildNetwork()

virtual void AttenuatorBase::buildNetwork ( )

protectedpure virtual

Build the schematic network.

Note: Pure virtual - each attenuator type implements its own

◆ calculateParams()

virtual void AttenuatorBase::calculateParams ( )

protectedpure virtual

Calculate component values and power dissipation.

Note: Pure virtual - each attenuator type implements its own

◆ getPowerDissipation()

QMap< QString, double > AttenuatorBase::getPowerDissipation ( )

inline

Get power dissipation for all resistors in the attenuator.

Returns: Map of resistor names to power values in Watts

◆ synthesize()

virtual void AttenuatorBase::synthesize ( )

pure virtual

Synthesize the attenuator: Calculates topology parameters and build the circuit.

Implements Network.

Implemented in BridgedTeeAttenuator, LPadFirstSeries, LPadFirstShunt, PiAttenuator, QW_SeriesAttenuator, QW_ShuntAttenuator, ReflectionAttenuator, RSeriesAttenuator, RShuntAttenuator, and TeeAttenuator.

The documentation for this class was generated from the following file:

Tools/DesignTools/AttenuatorDesign/AttenuatorBase.h
