LPadFirstSeries Class Reference

L-pad (first series) 1-port matched attenuator (definition) More...

#include <LPadFirstSeries.h>

Inheritance diagram for LPadFirstSeries:

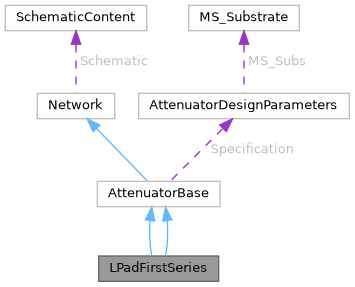

Collaboration diagram for LPadFirstSeries:

Public Member Functions
	LPadFirstSeries ()
	Class constructor.
virtual	~LPadFirstSeries ()
	Class destructor.
	LPadFirstSeries (AttenuatorDesignParameters AS)
	Class constructor with parameters.
void	synthesize () override
	Class constructor with parameters.
Public Member Functions inherited from AttenuatorBase
	AttenuatorBase ()=default
	Class constructor.
	AttenuatorBase (AttenuatorDesignParameters AS)
	Construct with design parameters.
virtual	~AttenuatorBase ()=default
	Class destructor.
QMap< QString, double >	getPowerDissipation ()
	Get power dissipation for all resistors in the attenuator.
Public Member Functions inherited from Network
virtual	~Network ()
	Destructor.

Additional Inherited Members
Public Attributes inherited from Network
SchematicContent	Schematic
	Circuit data including components, nets, and simulation info.
Protected Attributes inherited from AttenuatorBase
AttenuatorDesignParameters	Specification
	Design specifications.
QMap< QString, double >	Pdiss
	Power dissipation per resistor (Watts)

Detailed Description

L-pad (first series) 1-port matched attenuator (definition)

Constructor & Destructor Documentation

LPadFirstSeries()

LPadFirstSeries::LPadFirstSeries ( AttenuatorDesignParameters  AS )

inline

Class constructor with parameters.

Parameters

AS	Design specifications

Member Function Documentation

synthesize()

void LPadFirstSeries::synthesize ( )

overridevirtual

Class constructor with parameters.

Parameters

AS	Design specifications

Implements AttenuatorBase.

---

The documentation for this class was generated from the following files:

• Tools/DesignTools/AttenuatorDesign/LPadFirstSeries.h
• Tools/DesignTools/AttenuatorDesign/LPadFirstSeries.cpp
