Abstract base class for network implementations. More...
#include <Network.h>
Public Member Functions | |
| virtual | ~Network () |
| Destructor. | |
| virtual void | synthesize ()=0 |
| Synthesize the network. | |
Public Attributes | |
| SchematicContent | Schematic |
| Circuit data including components, nets, and simulation info. | |
Detailed Description
Abstract base class for network implementations.
Member Function Documentation
◆ synthesize()
|
pure virtual |
Synthesize the network.

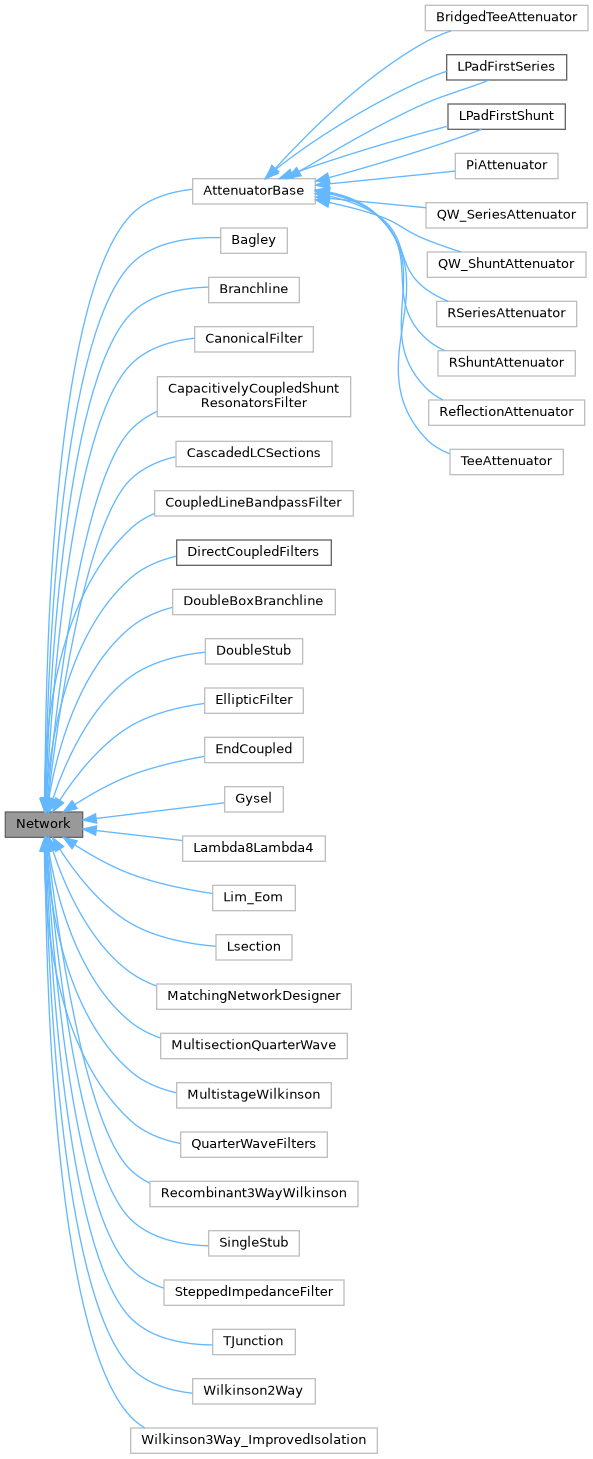

Implemented in CanonicalFilter, CapacitivelyCoupledShuntResonatorsFilter, CoupledLineBandpassFilter, DirectCoupledFilters, EllipticFilter, EndCoupled, QuarterWaveFilters, SteppedImpedanceFilter, CascadedLCSections, DoubleStub, Lambda8Lambda4, Lsection, MatchingNetworkDesigner, MultisectionQuarterWave, SingleStub, Bagley, Branchline, DoubleBoxBranchline, Gysel, Lim_Eom, MultistageWilkinson, Recombinant3WayWilkinson, TJunction, Wilkinson2Way, Wilkinson3Way_ImprovedIsolation, BridgedTeeAttenuator, LPadFirstSeries, LPadFirstShunt, PiAttenuator, QW_SeriesAttenuator, QW_ShuntAttenuator, ReflectionAttenuator, RSeriesAttenuator, RShuntAttenuator, TeeAttenuator, and AttenuatorBase.
The documentation for this class was generated from the following file:
- Schematic/Network.h
