Tee attenuator synthesis Reference: RF design guide. Systems, circuits, and equations. Peter Vizmuller. Artech House, 1995. More...
#include <TeeAttenuator.h>
Inheritance diagram for TeeAttenuator:

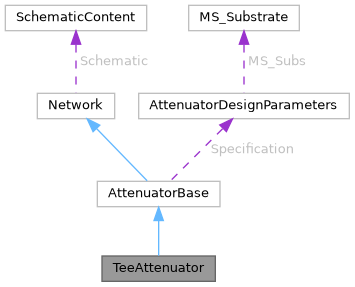

Collaboration diagram for TeeAttenuator:
Public Member Functions | |
| TeeAttenuator () | |
| Class constructor. | |
| TeeAttenuator (AttenuatorDesignParameters AS) | |
| Class constructor from specifications. | |
| virtual | ~TeeAttenuator () |
| Class destructor. | |
| void | synthesize () override |
| Class constructor with parameters. | |
 Public Member Functions inherited from AttenuatorBase | |
| AttenuatorBase ()=default | |
| Class constructor. | |
| AttenuatorBase (AttenuatorDesignParameters AS) | |
| Construct with design parameters. | |
| virtual | ~AttenuatorBase ()=default |
| Class destructor. | |
| QMap< QString, double > | getPowerDissipation () |
| Get power dissipation for all resistors in the attenuator. | |
| Public Member Functions inherited from Network | |
| virtual | ~Network () |
| Destructor. | |
Additional Inherited Members | |
| Public Attributes inherited from Network | |
| SchematicContent | Schematic |
| Circuit data including components, nets, and simulation info. | |
| Protected Attributes inherited from AttenuatorBase | |
| AttenuatorDesignParameters | Specification |
| Design specifications. | |
| QMap< QString, double > | Pdiss |
| Power dissipation per resistor (Watts) | |
Detailed Description
Tee attenuator synthesis Reference: RF design guide. Systems, circuits, and equations. Peter Vizmuller. Artech House, 1995.
Member Function Documentation
◆ synthesize()
|
overridevirtual |
The documentation for this class was generated from the following files:
- Tools/DesignTools/AttenuatorDesign/TeeAttenuator.h
- Tools/DesignTools/AttenuatorDesign/TeeAttenuator.cpp
