Reflection attenuator synthesis Reference: The PIN diode circuit designer's handbook. W.E. Doherty, Jr., R.D. Joos, Microsemi Corp., 1998. More...

Inheritance diagram for ReflectionAttenuator:

[legend]

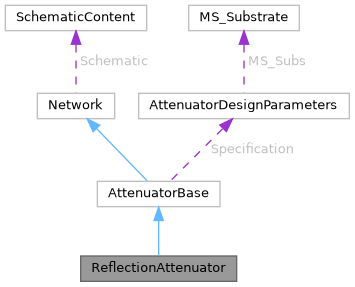

Collaboration diagram for ReflectionAttenuator:

[legend]

Public Member Functions
	ReflectionAttenuator ()
	Class constructor.

	ReflectionAttenuator (AttenuatorDesignParameters AS)
	Class constructor with parameters.

virtual	~ReflectionAttenuator ()
	Class destructor.

void	synthesize () override
	Calculate component values and build schematic.

Public Member Functions inherited from AttenuatorBase
	AttenuatorBase ()=default
	Class constructor.

	AttenuatorBase (AttenuatorDesignParameters AS)
	Construct with design parameters.

virtual	~AttenuatorBase ()=default
	Class destructor.

QMap< QString, double >	getPowerDissipation ()
	Get power dissipation for all resistors in the attenuator.

Public Member Functions inherited from Network
virtual	~Network ()
	Destructor.

Additional Inherited Members
Public Attributes inherited from Network
SchematicContent	Schematic
	Circuit data including components, nets, and simulation info.

Protected Attributes inherited from AttenuatorBase
AttenuatorDesignParameters	Specification
	Design specifications.

QMap< QString, double >	Pdiss
	Power dissipation per resistor (Watts)

Detailed Description

Reflection attenuator synthesis Reference: The PIN diode circuit designer's handbook. W.E. Doherty, Jr., R.D. Joos, Microsemi Corp., 1998.

Constructor & Destructor Documentation

ReflectionAttenuator::ReflectionAttenuator ( AttenuatorDesignParameters AS )

inline

Class constructor with parameters.

Parameters

AS	Design specifications

void ReflectionAttenuator::synthesize ( )

overridevirtual

Calculate component values and build schematic.

The documentation for this class was generated from the following files:
