Matching network design data. More...
#include <structures.h>

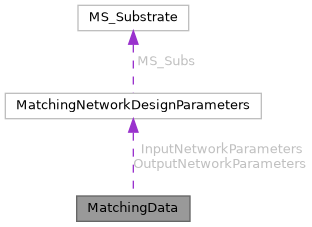

Collaboration diagram for MatchingData:
Public Attributes | |
| MatchingNetworkDesignParameters | InputNetworkParameters |
| Input network params. | |
| MatchingNetworkDesignParameters | OutputNetworkParameters |
| Output network params. | |
| std::array< std::complex< double >, 4 > | sparams |
| S-parameters. | |
| bool | twoPortMode |
| Two-port mode flag. | |
| double | f_match |
| Target frequency (Hz) | |
Detailed Description
Matching network design data.
The documentation for this struct was generated from the following file:
- Schematic/structures.h
