Synthesize microstrip lines. More...

#include <Microstrip.h>

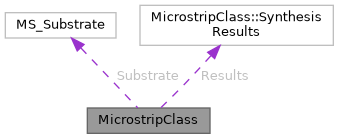

Collaboration diagram for MicrostripClass:

[legend]

Classes
struct	SynthesisResults
	Structure for microstrip calculations. More...

Public Member Functions
	MicrostripClass ()=default
	@brieg Class constructor

	~MicrostripClass ()=default
	Class destructor.

void	calcMicrostrip (double width, double freq, double &er_eff, double &zl)
	Calculates the impedance and relative effective permittivity of a microstrip line.

bool	synthesizeMicrostrip (double Z0, double e_length, double freq)
	Synthesizes microstrip width for given characteristic impedance.

double	getMicrostripOpen (double Wh, double er, double er_eff)
	Calculates additional line length for microstrip open end.

bool	synthesizeCoupledMicrostrip (double zl_even, double zl_odd, double length, double freq)
	Synthesizes coupled microstrip dimensions for given even and odd mode impedances.

void	calcCoupledMicrostrip (double width, double gap, double freq, double &zl_even, double &zl_odd, double &er_eff_even, double &er_eff_odd)
	Calculates even and odd mode parameters for coupled microstrip lines.

void	printResults (const std::string &title="Results")
	Prints results in a formatted way.

Detailed Description

Synthesize microstrip lines.

Member Function Documentation

void MicrostripClass::calcMicrostrip	(	double	width,
		double	freq,
		double &	er_eff,
		double &	zl
	)

Calculates the impedance and relative effective permittivity of a microstrip line.

Parameters

	width	Trace width (mm).
	freq	Frequency (Hz).
	er_eff	Effective relative permittivity (output).
[out]	zl	Characteristic impedance (Ω, output).
