LPadFirstSeries Class Reference

L-pad (first series) 1-port matched attenuator (definition) More...

#include <LPadFirstSeries.h>

Inheritance diagram for LPadFirstSeries:

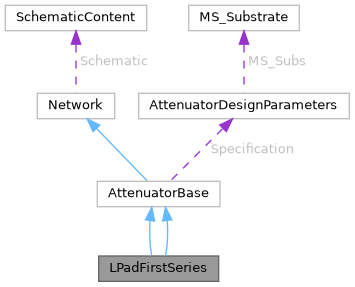

Collaboration diagram for LPadFirstSeries:

Public Member Functions
	LPadFirstSeries (AttenuatorDesignParameters)
void	synthesize () override
	LPadFirstSeries ()
	Class constructor.
virtual	~LPadFirstSeries ()
	Class destructor.
	LPadFirstSeries (AttenuatorDesignParameters AS)
	Class constructor with parameters.
void	synthesize () override
	Class constructor with parameters.
Public Member Functions inherited from AttenuatorBase
	AttenuatorBase (AttenuatorDesignParameters AS)
QMap< QString, double >	getPowerDissipation ()

Additional Inherited Members
Public Attributes inherited from Network
SchematicContent	Schematic
Protected Attributes inherited from AttenuatorBase
AttenuatorDesignParameters	Specification
QMap< QString, double >	Pdiss

Detailed Description

L-pad (first series) 1-port matched attenuator (definition)

Constructor & Destructor Documentation

LPadFirstSeries()

LPadFirstSeries::LPadFirstSeries ( AttenuatorDesignParameters  AS )

inline

Class constructor with parameters.

Parameters

AS	Design specifications

Member Function Documentation

synthesize() [1/2]

void LPadFirstSeries::synthesize ( )

overridevirtual

Implements AttenuatorBase.

synthesize() [2/2]

void LPadFirstSeries::synthesize ( )

overridevirtual

Class constructor with parameters.

Parameters

AS	Design specifications

Implements AttenuatorBase.

---

The documentation for this class was generated from the following files:

• Tools/AttenuatorDesign/L_pad_1st_series.h
• Tools/AttenuatorDesign/LPadFirstSeries.h
• Tools/AttenuatorDesign/L_pad_1st_series.cpp
• Tools/AttenuatorDesign/LPadFirstSeries.cpp
