L-pad (first shunt) 1-port matched attenuator (definition) More...

#include "Misc/general.h"
#include "Schematic/component.h"
#include "AttenuatorBase.h"
#include <QPen>

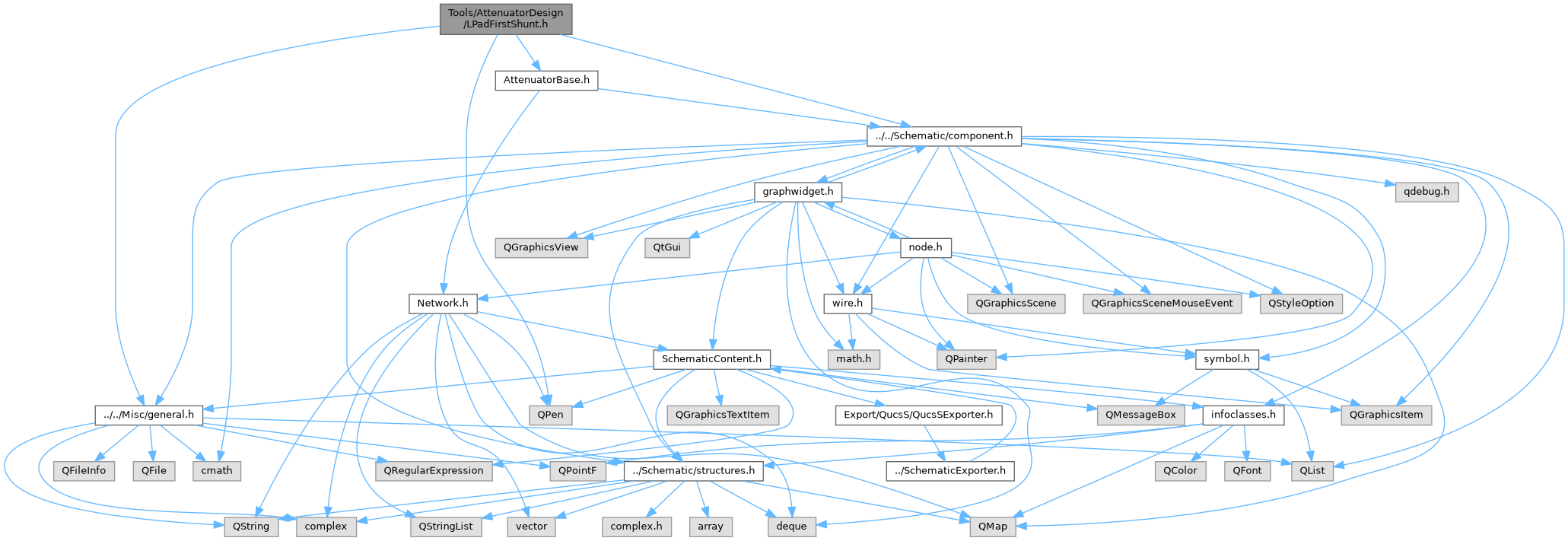

Include dependency graph for LPadFirstShunt.h:

This graph shows which files directly or indirectly include this file:

Classes
class	LPadFirstShunt
	L-pad (first shunt) 1-port matched attenuator (definition) More...

Detailed Description

L-pad (first shunt) 1-port matched attenuator (definition)

Author: Andrés Martínez Mera - andre.nosp@m.smme.nosp@m.ra@pr.nosp@m.oton.nosp@m.mail..nosp@m.com

Copyright: Copyright (C) 2019-2025 Andrés Martínez Mera @license GPL-3.0-or-later
