MicrostripClass Class Reference

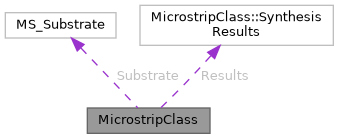

Collaboration diagram for MicrostripClass:

Classes
struct	SynthesisResults

Public Member Functions
void	calcMicrostrip (double width, double freq, double &er_eff, double &zl)
bool	synthesizeMicrostrip (double Z0, double e_length, double freq)
double	getMicrostripOpen (double Wh, double er, double er_eff)
bool	synthesizeCoupledMicrostrip (double zl_even, double zl_odd, double length, double freq)
void	calcCoupledMicrostrip (double width, double gap, double freq, double &zl_even, double &zl_odd, double &er_eff_even, double &er_eff_odd)
void	printResults (const std::string &title="Results")

Public Attributes
MS_Substrate	Substrate
SynthesisResults	Results

---

The documentation for this class was generated from the following files:

• Tools/TransmissionLineSynthesis/Microstrip.h
• Tools/TransmissionLineSynthesis/Microstrip.cpp
